Embarking on the journey of assembling the Ender 3 V2 3D Printer can be both exciting and daunting. This printer, known for its affordability and quality, demands attention to detail during assembly.

Getting it right from the start is crucial; a well-assembled printer is the cornerstone of producing high-quality prints.

In my experience, understanding how to assemble a 3D printer like the Ender 3 V2 is not just about following steps; it’s about embracing the process and ensuring each component works in harmony. Let’s dive into the world of 3D printer assembly, where precision meets creativity.

Read More:

Pre-Assembly Preparations

Unboxing and Identifying Components

Opening the box of the Ender 3 V2, I felt a mix of anticipation and a bit of anxiety. Inside, a myriad of parts awaited: from the machine base to the aluminum frames, and the all-important LCD screen. It’s like a puzzle waiting to be solved.

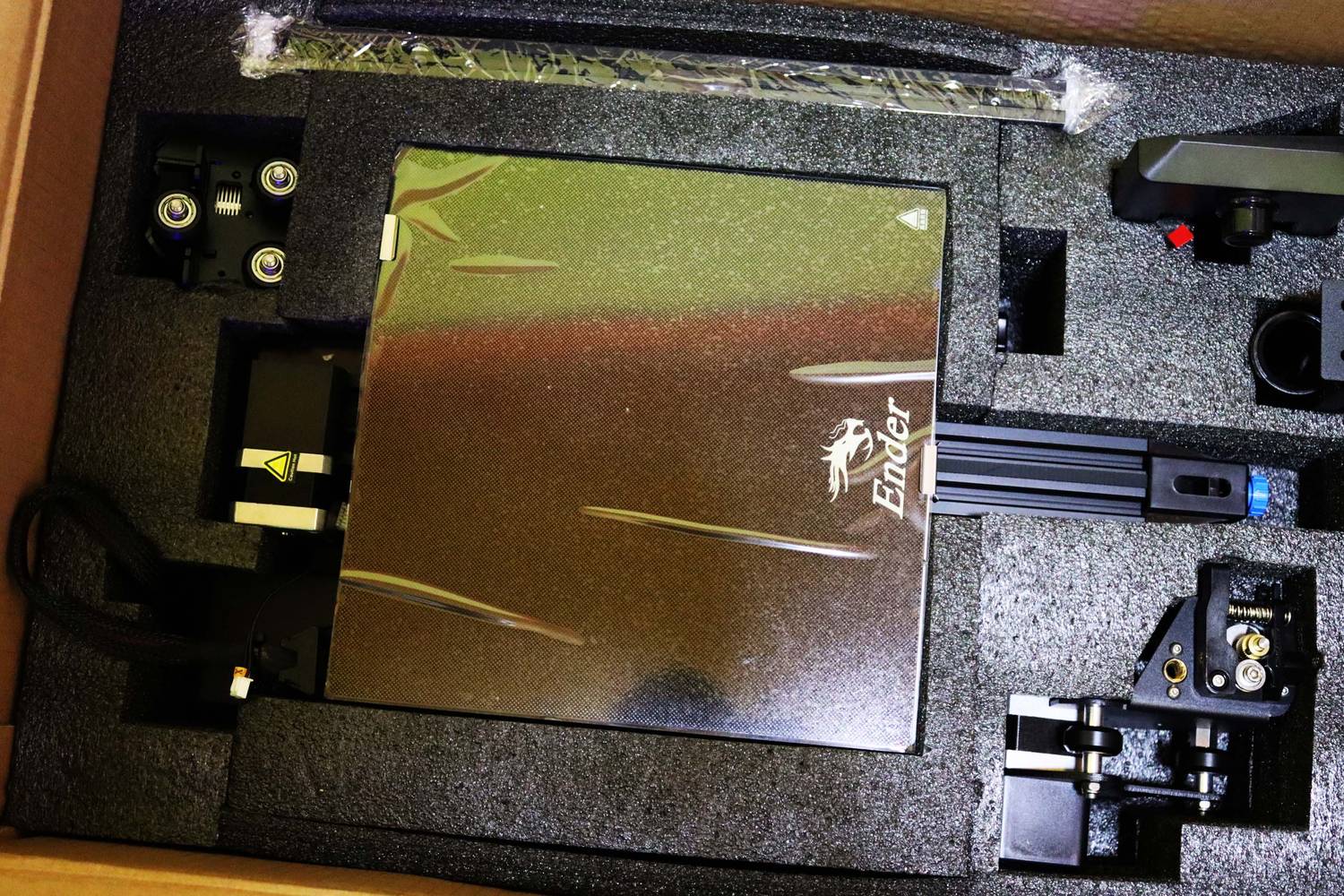

unboxing ender 3 v 2 1.jpg?q=50&fit=crop&w=1500&dpr=1 | 3D Gear Guide

Source: makeuseof

Organizing these components is key. Lay them out, compare them with the manual’s inventory list, and familiarize yourself with each piece. This initial step is more than just sorting; it’s about building a mental map of the printer.

Required Tools for Assembly

Now, let’s talk tools. You don’t need a workshop full of gadgets, but a few essentials are crucial. A set of Allen keys, a wrench, and a screwdriver usually do the trick.

These were included in my kit, but it’s always good to have your own trusted tools at hand. Remember, the right tool not only makes the job easier but also prevents damage to the delicate parts of your printer.

Safety Precautions and Tips

Safety is paramount. Working with electronics and mechanical parts means being cautious. Ensure your workspace is well-lit and free from clutter. Keep a first-aid kit nearby – you never know when a small cut or scrape might happen.

And most importantly, patience is your ally. Rushing can lead to mistakes, so take your time, and enjoy the process of bringing your 3D printer to life. Remember, this is the foundation upon which all your future projects will be built.

Step-by-Step Assembly Guide

1. Installing the Frame and Base

Attaching Z-axis Profiles and Limit Switch: Starting with the frame, the Z-axis profiles are the backbone of your Ender 3 V2. Aligning them correctly sets the stage for everything else. First, I attached the Z-axis limit switch, a small but crucial component that tells your printer where to stop.

installing the x and z limit switches 1.jpg?q=50&fit=crop&w=1500&dpr=1 | 3D Gear Guide

Sorce: makeuseof

It’s a bit fiddly, so take your time. Then, securing the Z-axis profiles to the base with the provided screws was straightforward. Remember, snug but not overtightened – these profiles need to be firm but not strained.

Mounting the Z-axis Motor and Lead Screw: Next up, the Z-axis motor. This part can feel a bit like a mini workout. Holding the motor in place while screwing it in requires a bit of dexterity. The lead screw, a long threaded rod, then slides into the motor.

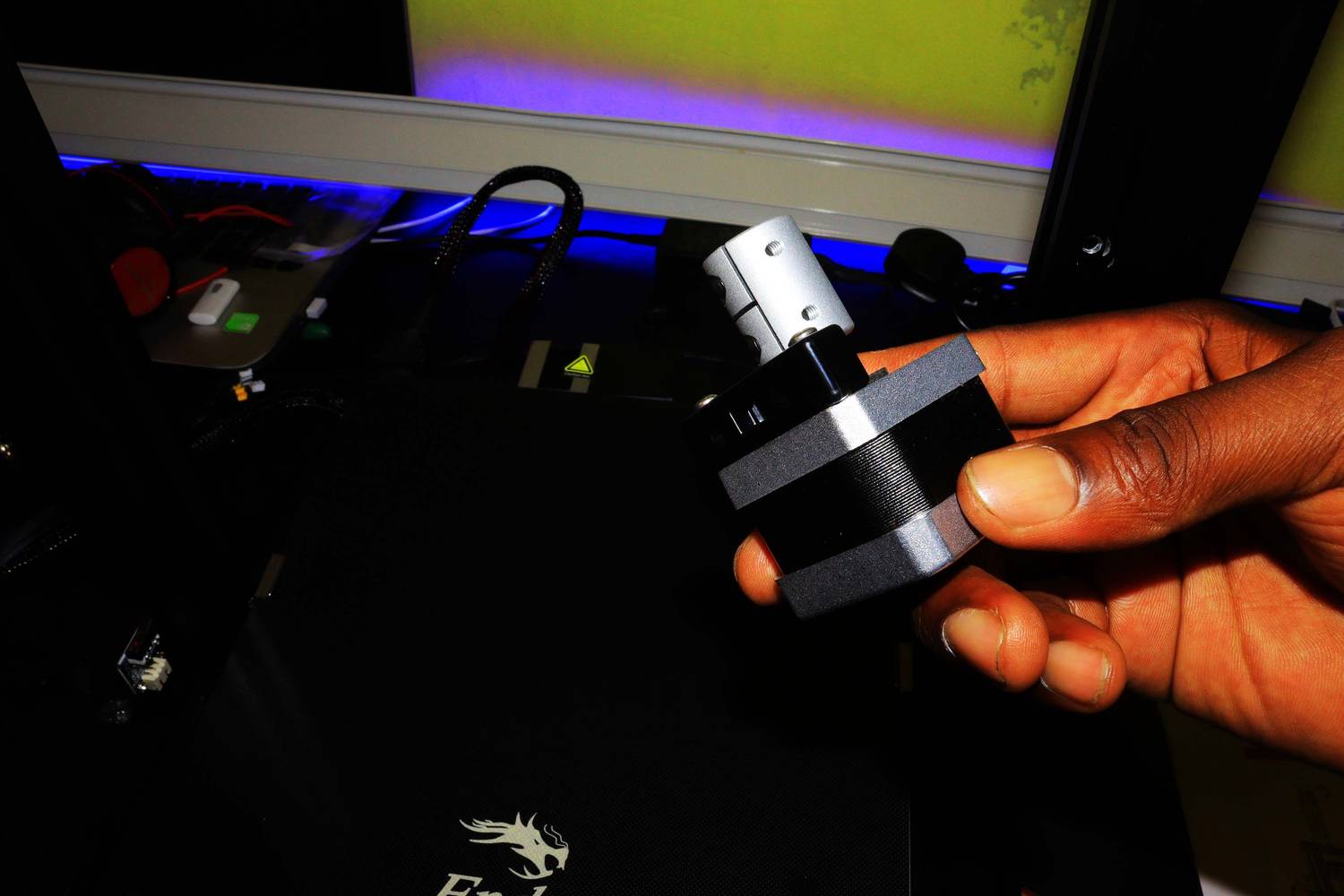

z axis motor of ender 3 v 2 1.jpg?q=50&fit=crop&w=1500&dpr=1 | 3D Gear Guide

Sorce: makeuseof

It’s essential to ensure it’s straight and true. Any misalignment here, and you’ll hear it in the grinding of the motor later.

2. Setting up the XE-Axis Assembly

Installing the Pneumatic Joint and Drive Belt: Moving on to the XE-axis assembly, the pneumatic joint was a piece that intrigued me. It connects the Bowden tube to the extruder and needs a firm hand to tighten.

Then, threading the drive belt through the XE-axis assembly felt like threading a needle. It’s a test of patience but oh-so-satisfying when done right.

Assembling the Nozzle and Z-Axis Roller Bracket: Assembling the nozzle and Z-axis roller bracket brought its own challenges. Aligning the nozzle correctly is vital for smooth prints later. The roller bracket, which guides the movement, needs careful alignment. A misstep here, and you’ll find your prints skewed.

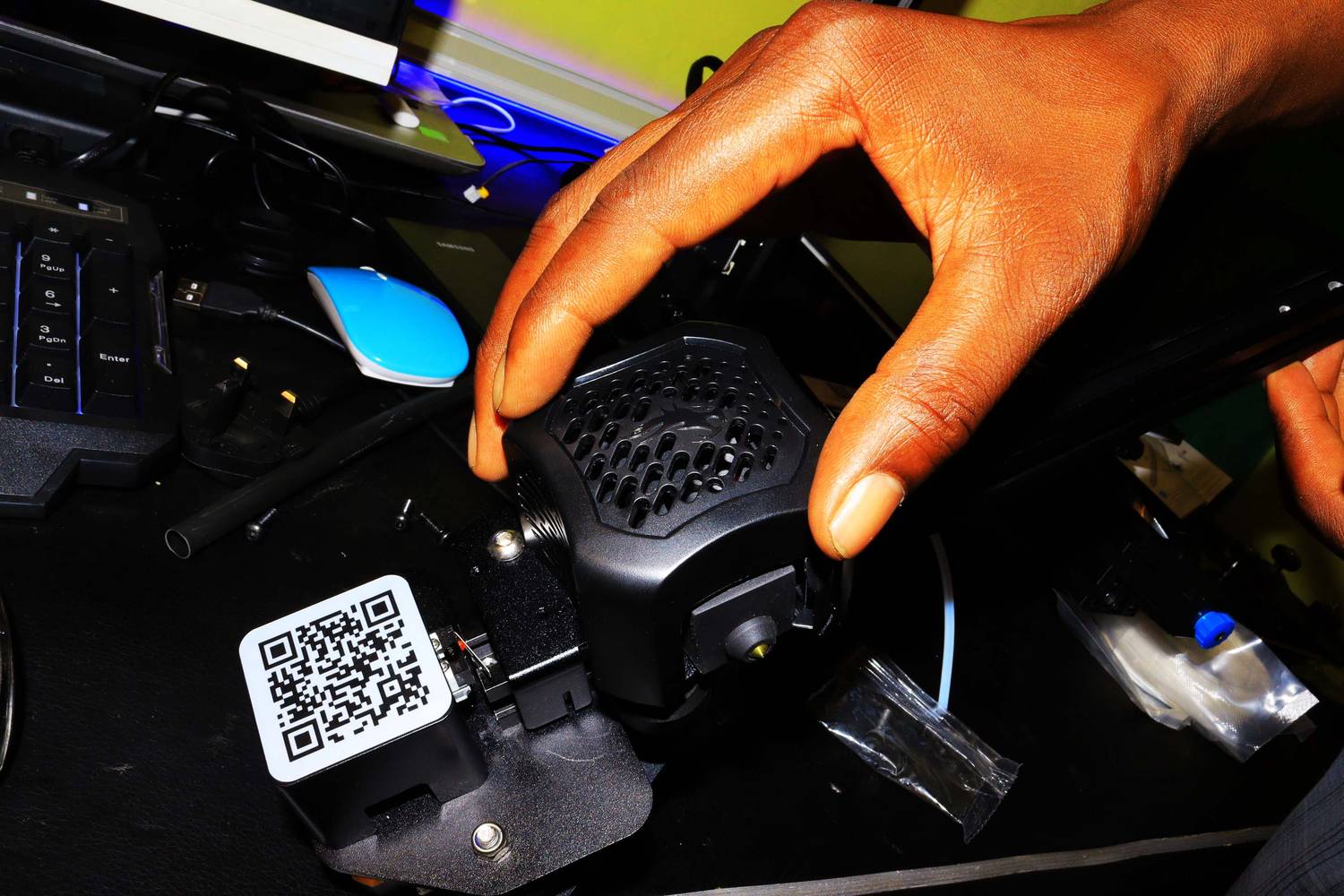

inserting the nozzle kit 1.jpg?q=50&fit=crop&w=1500&dpr=1 | 3D Gear Guide

Sorce: makeuseof

3. Finalizing the Mechanical Assembly

Connecting the Drive Belt and X-Axis Tensioner: The drive belt connects the whole system. It’s like the veins of the printer, carrying movement throughout. The X-axis tensioner, a small but mighty part, keeps the belt taut. Not too tight, though – a lesson I learned the hard way.

Installing the Z-Axis Gantry: The Z-axis gantry installation is where things start to look like a printer. It’s a balancing act, aligning the gantry while screwing it in place. This step gave me a real sense of progress.

Adjusting Belt Tension: Finally, adjusting the belt tension was the last mechanical step. It’s a Goldilocks situation – not too tight, not too loose. Getting this right made all the difference in the printer’s movement and noise level.

Each step in this assembly journey brought its challenges and triumphs. The key is to take it slow, understand each part’s role, and enjoy the process of creating something amazing from a box of parts.

Electrical Setup and Connections

The moment had arrived to breathe life into the Ender 3 V2 with its electrical setup. This phase felt like the bridge between the physical build and the first print.

1. Connecting Electrical Wires

Handling the wires, I was reminded of the importance of precision. Each connector had its rightful place, and ensuring they were snugly fitted was key. It’s like completing an electrical circuit puzzle, where every piece is crucial for the next.

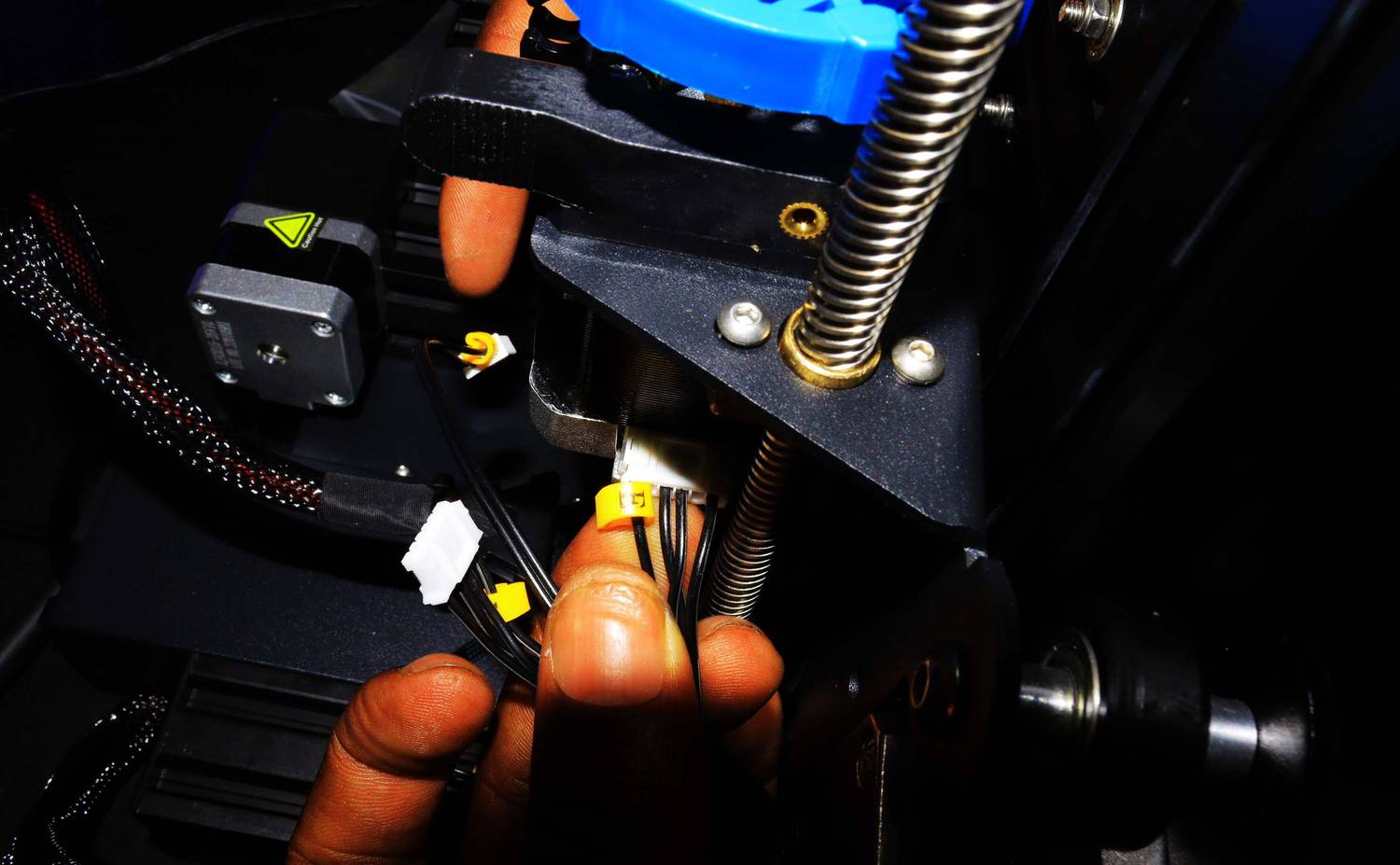

inserting the connectors 1.jpg?q=50&fit=crop&w=1500&dpr=1 | 3D Gear Guide

The color-coded wires and clearly labeled connectors were a relief, guiding me through what could have been an overwhelming task.

2. Setting the Correct Voltage

Setting the correct voltage was a step I approached with respect. It’s not just about flipping a switch; it’s about ensuring the printer’s heart beats in rhythm with your local power supply.

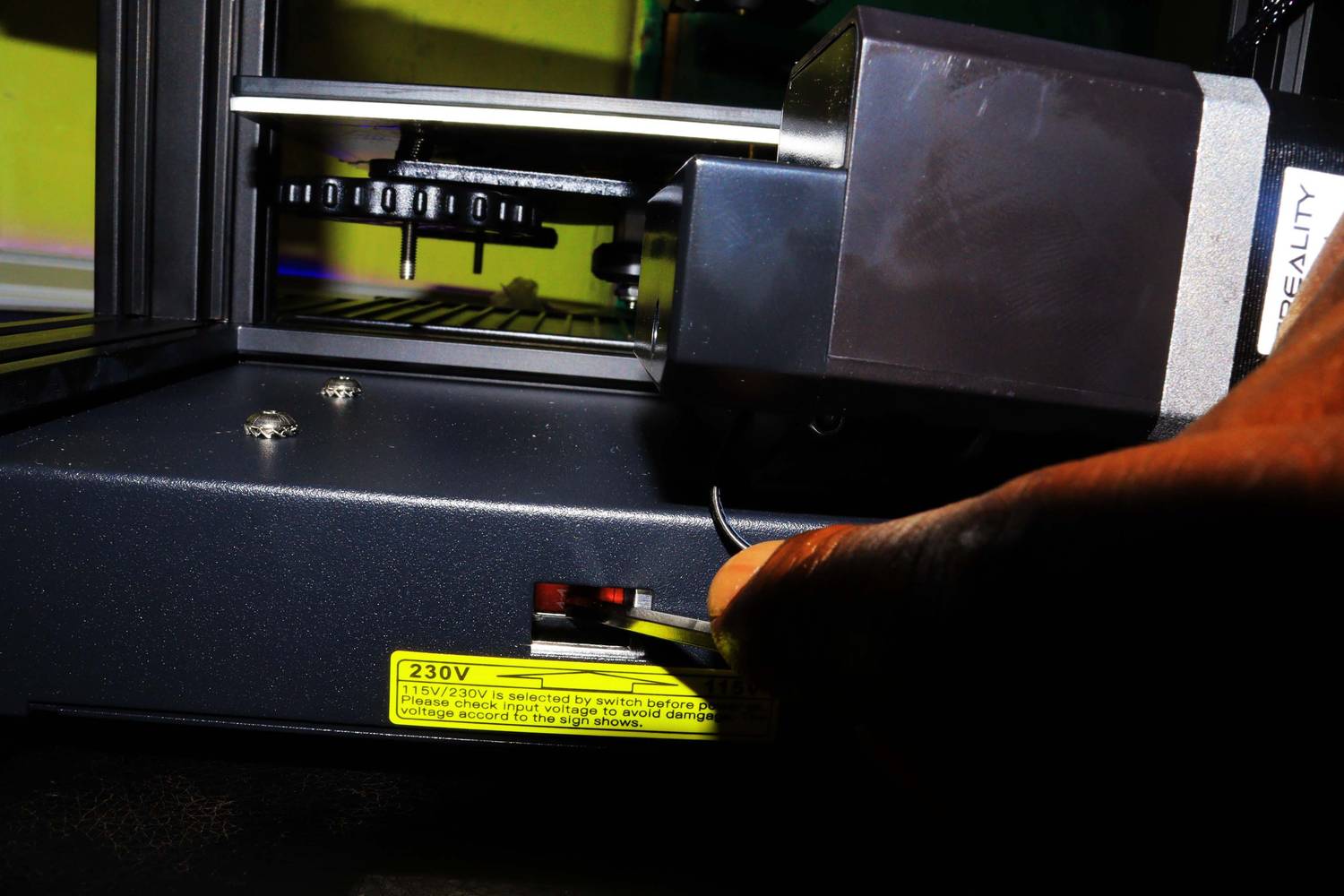

setting correct voltage 1.jpg?q=50&fit=crop&w=1500&dpr=1 | 3D Gear Guide

A wrong voltage setting could mean the difference between a successful first print and a call to customer support.

3. Powering Up and Initial Testing

Finally, the moment of truth – powering up. The hum of the printer coming to life was music to my ears. This initial test run was not just about checking if everything worked, but also about feeling a sense of accomplishment. Watching the LCD screen light up, I knew that every careful step taken was worth the effort.

inserting the power source to the printer 1.jpg?q=50&fit=crop&w=1500&dpr=1 | 3D Gear Guide

Calibration and Fine-Tuning

After assembling the Ender 3 V2, I entered the world of calibration and fine-tuning, a stage as crucial as the assembly itself. This is where you ensure that your printer doesn’t just work, but works perfectly.

1. Leveling the Bed

Leveling the bed was the first task. It’s a bit like tuning a guitar; each corner needs just the right amount of tension.

Sliding a piece of paper between the nozzle and the bed, adjusting until it gently scratches the paper, was oddly satisfying. It’s a simple yet effective method to ensure your prints start on a level foundation.

2. Calibrating the Extruder

Next was calibrating the extruder. This step ensures that the amount of filament fed into the printer matches what the software expects.

It’s a bit like setting the pace for a marathon runner; too fast or too slow, and your print won’t turn out right. A little tweaking here made a significant difference in the quality of the prints.

3. Testing with a Simple Print

Finally, the test print. Choosing a simple object, I watched as the printer brought my efforts to life. This wasn’t just about testing the machine; it was about seeing the culmination of all the steps come together.

The first print might not have been perfect, but it was a starting point for further refinement and learning. Each layer added was a testament to the journey from unboxing to printing.

Troubleshooting Common Assembly Challenges

Even with the most meticulous assembly, challenges can arise. It’s part of the 3D printing journey. Addressing these hurdles head-on is key to ensuring your printer operates smoothly.

1. Addressing Misalignment Issues

Misalignment was one of the first hiccups I encountered. It’s like a puzzle where pieces don’t quite fit. Whether it was the frame not sitting right or the axes being slightly off, each misstep had a solution. Patience and precision were my allies here, realigning each part, ensuring everything moved as intended.

2. Resolving Belt Tension Problems

Then came the belt tension issues. Too tight, and the printer sounded like it was straining with every move. Too loose, and the prints lost their definition. Finding that sweet spot for the belts was crucial. It was a delicate balance, adjusting and readjusting until the movement was smooth and the prints were sharp.

3. Dealing with Electrical Connection Errors

Electrical connections were another area where attention to detail mattered. A loose wire or an incorrect connection could stop the whole process.

Double-checking each connection, ensuring they were secure and correctly placed, was time well spent. It was about understanding that these wires were the lifelines of the printer, carrying the commands that brought models to life.

In troubleshooting these challenges, I learned that each problem was an opportunity to understand my printer better. It was about turning obstacles into stepping stones, leading to a machine that didn’t just work, but worked wonderfully.

Maintenance and Upgrades

Regular Maintenance Tips Post-Assembly

After assembling the Ender 3 V2, regular maintenance is crucial to keep it running smoothly. It’s like caring for a car; routine checks and tweaks can significantly extend its life and improve performance.

  1. Cleanliness is Key: Regularly clean the build plate and the extruder nozzle. A clogged nozzle or a dirty bed can ruin prints and cause unnecessary wear.
  2. Belt Tension Checks: Periodically check the tension of the X and Y-axis belts. They shouldn’t be too tight or too loose. This ensures accuracy in your prints and prevents wear on the motors.
  3. Lubricate Moving Parts: Apply lubricant to the Z-axis screw and other moving parts. This reduces friction, ensuring smoother movement and reducing wear.
  4. Firmware Updates: Keep the firmware updated. Manufacturers often release updates that improve performance and add new features.
  5. Check for Wear and Tear: Regularly inspect all parts for signs of wear. Replace parts like the Bowden tube or the PTFE fittings if they show signs of damage.

Upgrading your Ender 3 V2 can enhance its capabilities and your printing experience.

  1. Glass Bed: Upgrading to a glass bed can improve adhesion and give a smoother bottom finish to your prints.
  2. Silent Mainboard Upgrade: A silent mainboard not only reduces the noise level but also improves print quality with smoother stepper motor control.
  3. Metal Extruder Upgrade: A metal extruder is more durable than the stock plastic one and provides better filament grip, reducing the risk of filament slipping.
  4. Auto Bed Leveling Sensor: This upgrade can save time and improve print reliability by automatically compensating for any unevenness in the bed.
  5. Capricorn PTFE Tubing: This high-quality tubing has a lower friction coefficient than standard tubing, improving filament feeding and print quality.

Remember, maintenance and upgrades are ongoing processes. They not only keep your printer in top condition but also make your 3D printing journey more enjoyable and successful.

Conclusion

Reflecting on the assembly process of the Ender 3 V2, it’s been a journey filled with learning and satisfaction. From the initial unboxing to the final calibration, each step brought its own set of challenges and triumphs.

To those just starting out, remember that every assembler was once a beginner. Your patience and persistence will not only build a printer but also a wealth of experience.

Embrace each hurdle as a stepping stone to mastery in the fascinating world of 3D printing. Keep building, keep learning, and most importantly, enjoy the process!
