3D printing, a realm where creativity meets technology, has revolutionized how we bring ideas to life. Yet, it’s not without its challenges, particularly the notorious 3d printing overhang problem.
Overhangs in 3D printing are like architectural cantilevers – parts of your design that extend out, defying gravity, without direct support underneath. They’re crucial for intricate designs but can be a real headache, often leading to droopy or distorted prints.
Addressing this issue isn’t just about aesthetics; it’s about pushing the boundaries of what’s possible in 3D printing, ensuring our visions don’t fall flat, quite literally. As someone who’s grappled with these pesky overhangs, I’ve learned that conquering them is key to unlocking the full potential of 3D printing.
Read More:
- How to Clean a Glass 3D Printer Bed? (With Post-Cleaning Care) (5 min read)
- What Are The Limitations of 3D Printing Technology? (5 min read)
- Common Troubles with Resin Prints and Solutions to Them (5 min read)
- How to Fix Scratches on the Top Surface of 3D Prints? (4 min read)
Understanding Overhangs in 3D Printing
Embarking on a 3D printing project is like setting sail on a vast ocean of possibilities, but when you hit the choppy waters of overhangs, it’s a whole new ball game.
Overhangs in 3D printing are those parts of your design that jut out, unsupported, like a cliff edge over a valley. They’re essential for intricate designs but can be a real head-scratcher to execute perfectly.
1. The Overhang Challenge
The challenge with overhangs lies in their defiance of gravity. Without anything underneath to support them, these parts can end up looking like a melted mess rather than the crisp, clean edges you envisioned.
It’s a bit like trying to build a bridge from one side of a river to the other without a supporting pillar in the middle – tricky, right?
2. Decoding the 45-Degree Rule
Enter the 45-degree rule, a guiding principle in the world of 3D printing. It states that any part of your design that forms an angle greater than 45 degrees with the base is likely to need some extra support. It’s a simple yet powerful rule that can save you from many a printing mishap.
Overhangs under 45° are usually safe to print, Source: grabcad
3. Common Overhang Issues
Despite our best efforts, overhangs can still go awry. Common issues include drooping, where the overhang sags downwards, or even complete print failures, where the overhang collapses under its own weight. It’s like watching your carefully constructed sandcastle get washed away by the tide.
Strategies for Managing Overhangs
Navigating the world of 3D printing overhangs can feel like solving a complex puzzle. But fear not, there are several strategies to manage these tricky structures effectively.
1. Embracing Support Structures
First up, let’s talk about support structures. These are your safety nets, ensuring those daring overhangs don’t plunge into the abyss of printing failure.
Exploring Types of Support Structures: Supports come in various forms, from simple breakaway supports to intricate water-soluble types. Each has its unique role, like actors in a play, ensuring the star (your overhang) shines without a hitch.
Weighing the Pros and Cons: Using supports is a bit of a double-edged sword. On one hand, they’re lifesavers for complex models. On the other, they can leave marks on your print, like footprints in fresh snow, and require extra work to remove.
2. Mastering Slicing Techniques
Slicing your model is like planning the route for a road trip. It can make or break your printing journey.
The Impact of Slicing on Overhangs: How you slice the model dictates how well your printer can handle those overhangs. It’s about finding the right balance, ensuring each layer supports the next.
Best Practices for Slicing: There are tricks to slicing for better overhangs. Think of it as giving your printer a detailed map, guiding it on the best path to take.
3. Optimizing Print Bed Orientation
Last but not least, the orientation of your print bed plays a crucial role.
Orientation and Overhang Success: The way you position your model on the bed can be the difference between a successful print and a spaghetti-like disaster.
Tips for Optimal Orientation: There are ways to tilt and turn your model for optimal printing. It’s like positioning a sunbather; the right angle gets the best tan, or in this case, the best print.
Advanced Techniques and Innovations
In the ever-evolving world of 3D printing, mastering overhangs is akin to a chef perfecting a signature dish. It’s an art and science, demanding not just patience but also a knack for embracing advanced techniques and innovations.
1. Cooling and Temperature Control
Temperature management in 3D printing is like adjusting the heat in cooking – too much or too little, and your dish, or in this case, your print, can go awry.
Cooling: Cooling is crucial, especially for overhangs. It’s like a gentle breeze on a hot day, ensuring each layer sets just right, preventing the dreaded droop.

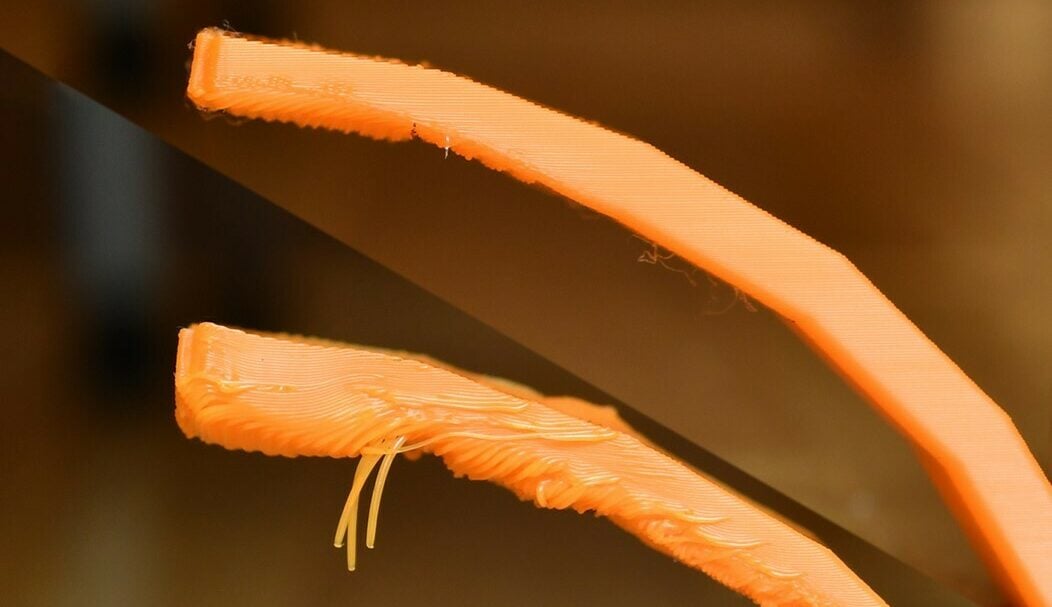

Overhangs printed with 100% fan speed (top) and without fans (bottom). Source: Reddit
Temperature Settings: Optimizing temperature settings is a balancing act. It’s about finding that perfect setting where the filament is malleable enough to shape yet solid enough to hold.
2. Selecting the Right Filament
Choosing the right filament is like picking the right ingredients for a recipe. The outcome heavily depends on the quality and type of material you use.
The Quest for the Perfect Filament: Each filament type brings its own strengths and quirks to the table. It’s about matching the filament’s characteristics with your project’s needs.
Material Matters: Different materials react differently to overhang challenges. Some are more forgiving, while others demand precision and care.
3. Harnessing Software and AI for Precision
In the digital age, software and AI are the secret weapons in your 3D printing arsenal.
AI and Machine Learning: Imagine having a smart assistant that learns and adapts, optimizing your prints for those tricky overhangs. That’s AI for you.
Slicer Software: Today’s slicer software does more than slice; it brings a suite of features, each designed to tackle specific printing challenges, including those pesky overhangs.
Tips and Tricks for Perfect Overhangs
Mastering overhangs in 3D printing can feel like trying to solve a complex puzzle. Each project brings its unique challenges, and sometimes, what worked for one design doesn’t quite cut it for another. But fear not, the world of 3D printing is full of seasoned navigators who’ve charted these waters and left behind a treasure trove of tips and tricks.
1. Gleaning Wisdom from the Experts
Imagine sitting down for coffee with a group of 3D printing gurus, each sharing their hard-earned secrets for perfect overhangs. That’s what we’re diving into here.
These industry professionals have been through it all – the triumphs, the failures, and everything in between. They know the ins and outs of overhangs and are here to guide us through.
2. Navigating the Do’s and Don’ts
In the world of 3D printing, every action, or inaction, has a consequence. Knowing what to do and what to avoid can be the difference between a print that’s a showstopper and one that stops the show for all the wrong reasons.
We’ll explore the essential do’s and don’ts, from filament choices to printer settings, ensuring you’re equipped for success.
3. Troubleshooting
Even with the best preparation, things can go sideways. Maybe your overhangs are drooping like a wilted flower, or perhaps they’re just not as crisp as you’d like.
Troubleshooting is an art in itself, a process of detective work where you piece together clues to find a solution. We’ll delve into common overhang issues and how to fix them, turning potential disasters into masterpieces.
If you encounter overhang issues with your 3D printer, check out this brief video. The creators share two significant tips to enhance your home 3D prints. Learn a simple solution to handle challenging overhangs that might be causing drooping and stringiness—it might surprise you.
Conclusion
As we wrap up our exploration into the world of 3D printing overhangs, it’s clear that the journey is as important as the destination.
We’ve navigated through various strategies, from support structures to slicing techniques and bed orientation, each offering its unique approach to managing overhangs. Looking ahead, the future of 3D printing overhangs is bright, teeming with innovations and advancements.
So, keep experimenting, keep learning, and most importantly, keep printing. The world of 3D printing is yours to shape and redefine.
